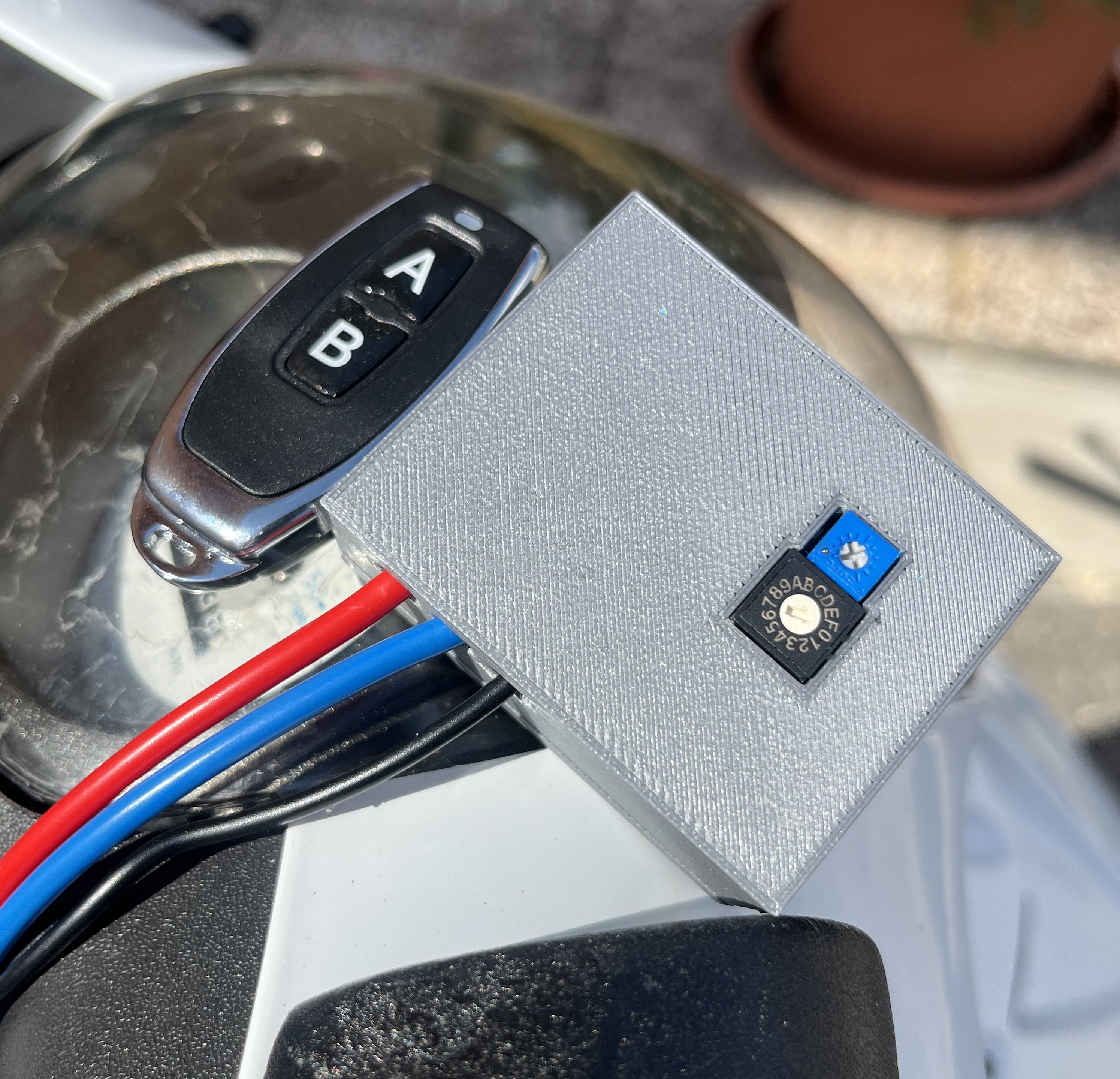

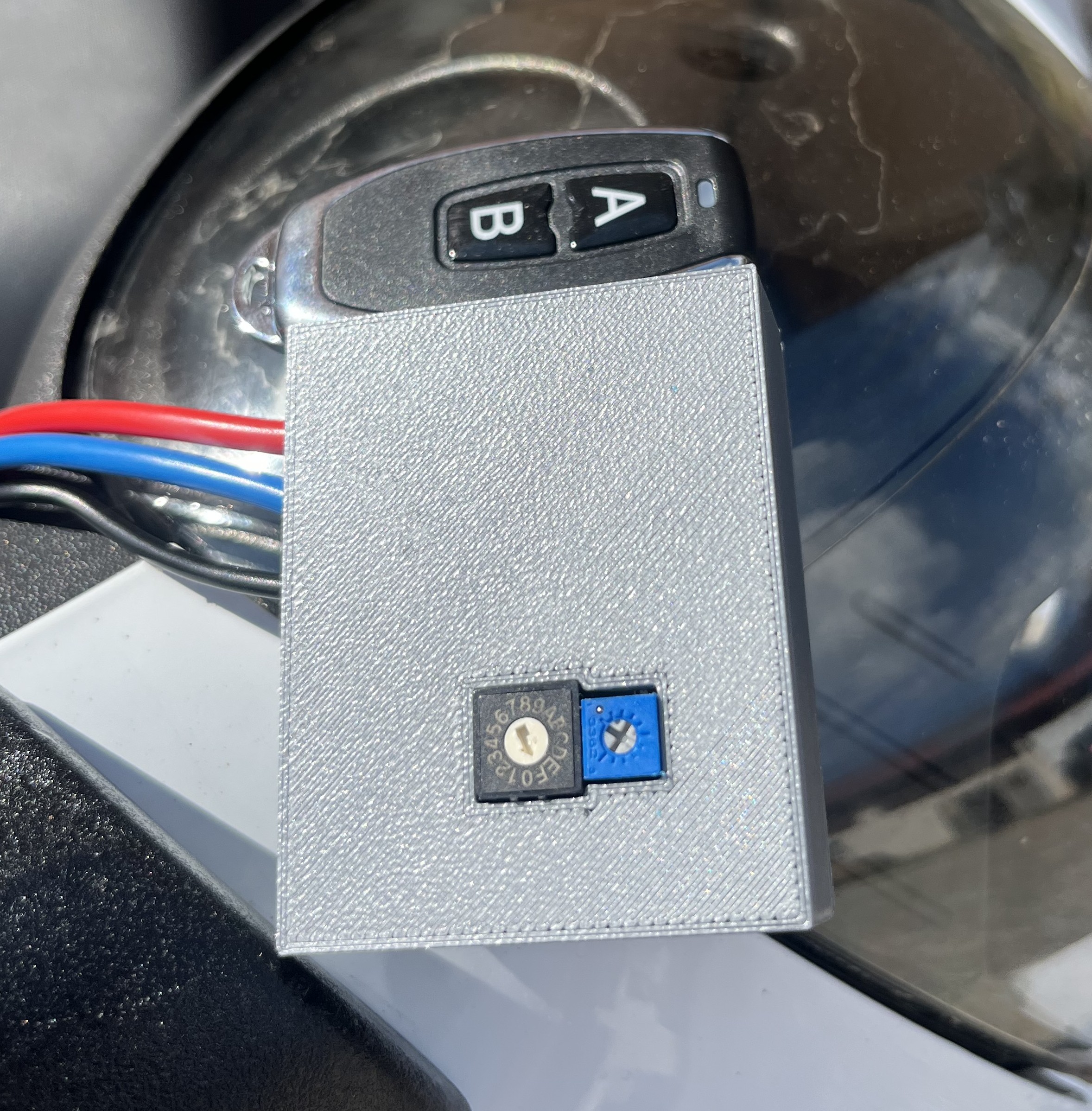

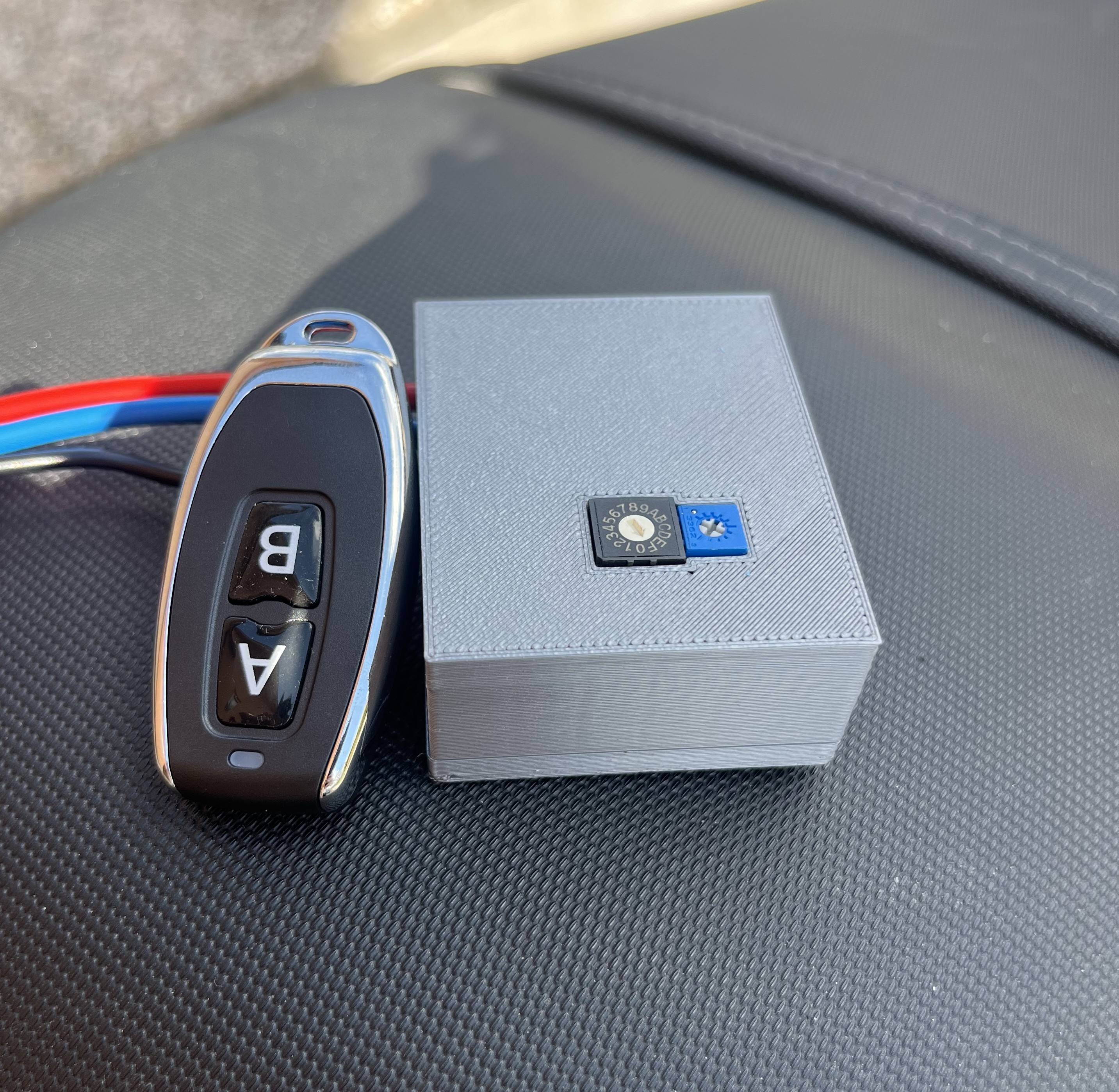

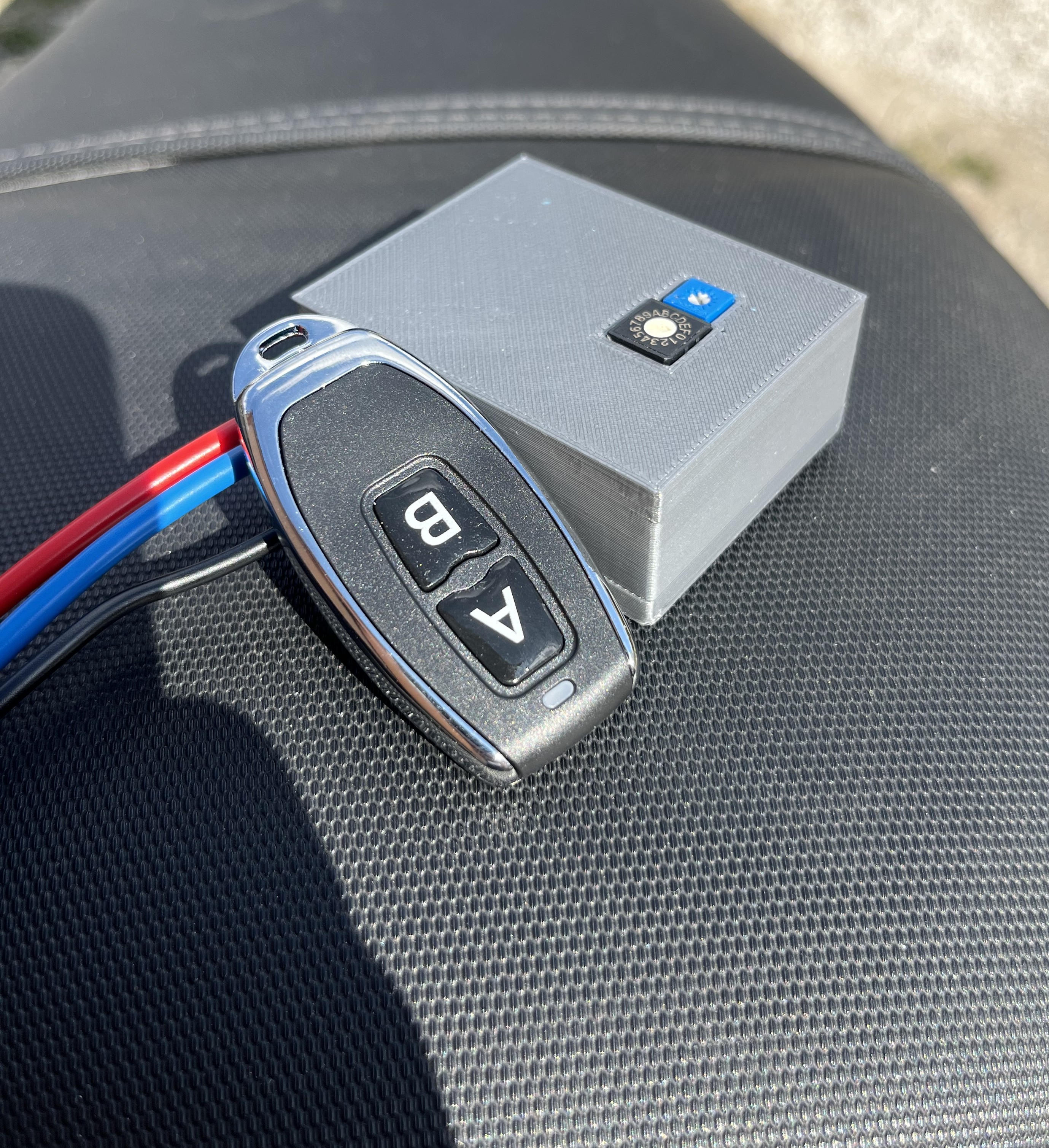

Adjustable RPM Limiter with Remote Control for 2T

This adjustable RPM limiter with remote control is designed exclusively for 2-stroke scooters with a carburetor. It allows you to limit or release engine speed remotely, providing safe and controlled riding when needed.

The maximum engine speed is easily adjustable using two built-in adjustment screws, allowing precise fine-tuning according to your requirements. When the limiter is deactivated via the remote control, the engine operates normally, as if no limiter were installed.

Key Features:

• Remote control ON / OFF function

• Adjustable engine speed using two adjustment screws

• Designed only for 2-stroke carburetor scooters

• Discreet and compact design

• Easy installation

Important Notes:

• Suitable only for 2-stroke engines with carburetor

• Not compatible with fuel-injected or 4-stroke engines

The red wire is connected to the red wire that runs from the coil (pickup) to the CDI. This red wire (on some models red/white or blue/white) can be found in the wiring loom that runs from the coil to the scooter’s wiring harness. The black wire goes to ground, and the blue wire goes to +12 V.
